Maat 1 F3K
Span 1.450 mm
Weight 250 g
Length 1.100 mm
Rudders YES
Elevators YES
Airfoil RZ
PRICE from
EUR € 259
Assembled model € 510
(just insert your own receiver)
► ORDER NOW
+ MODEL ACCESSORIES



☼ PHOTO GALLERY

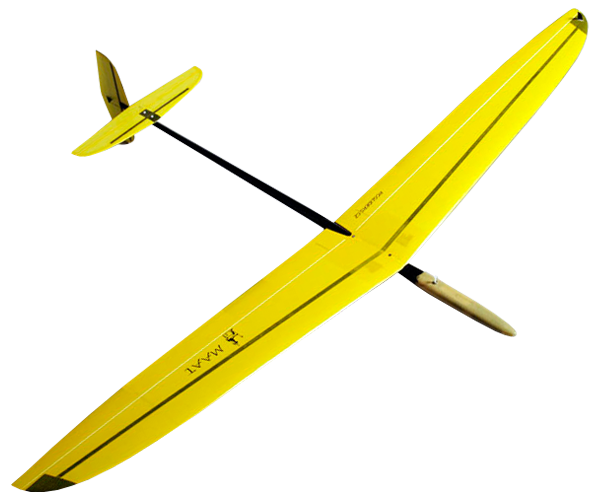

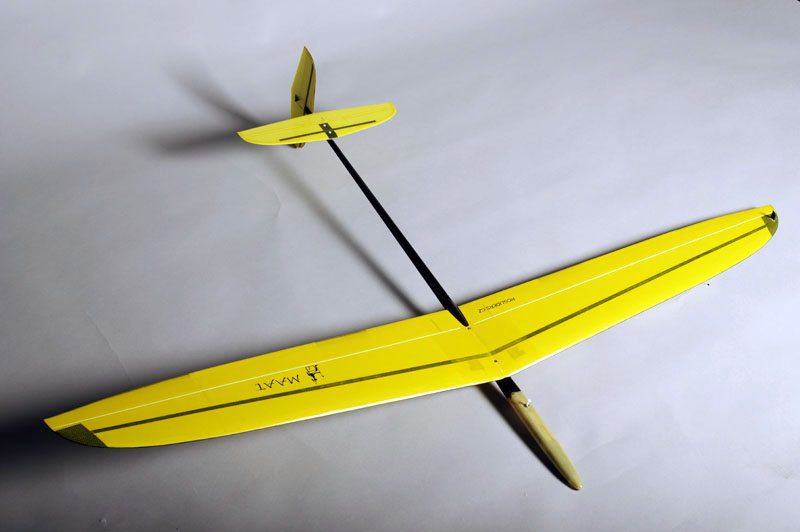

RC glider, designed for competition flying categories F3K and F6D. The wing and tails are very light and easy to repair thanks to the extruded polystyrene core. The carbon leading edges of the wing have a high puncture resistance while maintaining a minimum weight. The profiles used are from Jan Pejchar. They are slimmer (the depth of the wing at the root is only 175 mm) and give the glider perfect flight performance even in windy weather.

Everything is laminated from quality materials that do not require any unnecessary reinforcement. Excess reinforcements are a source of weight gain, which other manufacturers use to solve the insufficient stiffness of the wing. The wing, GTC and SOP have an XPS core laminated with Porcher glass fabric, Kevlar and carbon fabric. The beams in the wing are made of UMS carbon.

The wing is made as a whole. There is no need for inaccurate gluing of the wing halves to each other!

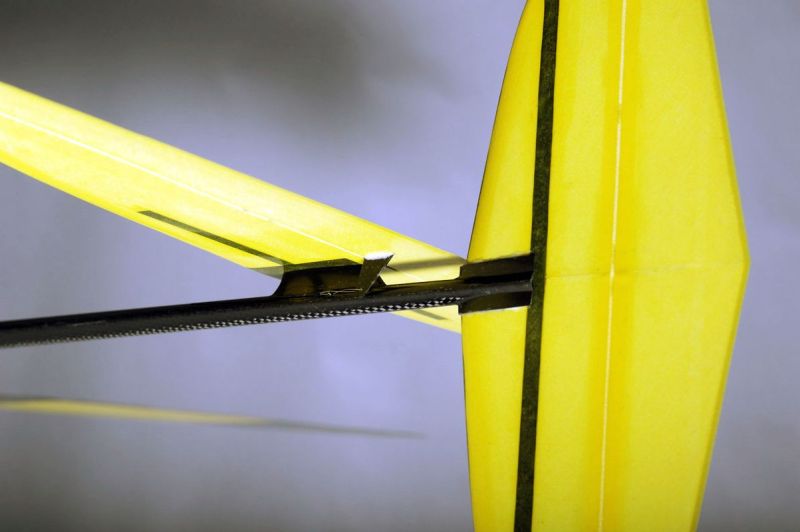

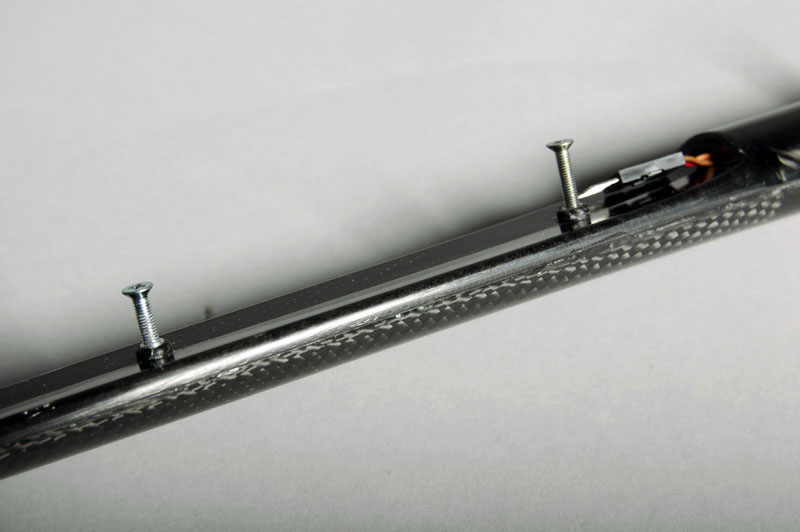

The hull experienced great development. Unlike other throwers in its Maat category, it contains the UMS carbon monolithic hull, manufactured by pressurized technology into a mold, guaranteeing the lowest weight while maintaining high strength. He is much slimmer than other gliders. Therefore, it must be made of only the highest quality UMS carbons. The elliptical cross-section gives great flexural strength to the side and thanks to that the model can be thrown much higher. The wing is seated in the center of the fuselage. The fuselage also contains a lock for the rudder and therefore the SOP can no longer be glued.

The glider follows the five-year development of the glider Thowt.

Accessories contained in package

4x carbon levers
screws (2x metal for wings and 2x nylon for elevator)
jack
2x 4-pin wing connectors
1x 3-pin battery connector
throwing pin
tail springs
2x wings for wing rods

Files to download

Manual - Maat 1 F3K
0.33 MB
Program for FrSky
0.35 MB
Program for Jeti
0.003 MB
